High Velocity Oxy Fuel (HVOF) Spray Equipment SX-8000

High-Velocity Oxy Fuel (HVOF)Producing the highest-quality coatings Nothing is more important in an HVOFsystem than its ability to produce high-quality coatings. Each of our systems is designed to generate extremely high particle velocity t

产品简介

Introduction:

Sanxin thermal spraying system is widely used in all kinds of industry to make metal stronger, more durable, and more corrosion resistant, improve component’s surface properties, thus extending equipment life by significantly increasing erosion and wear resistance, corrosion protection and high temperature resistant.

Thermal Spray Processing Steps:

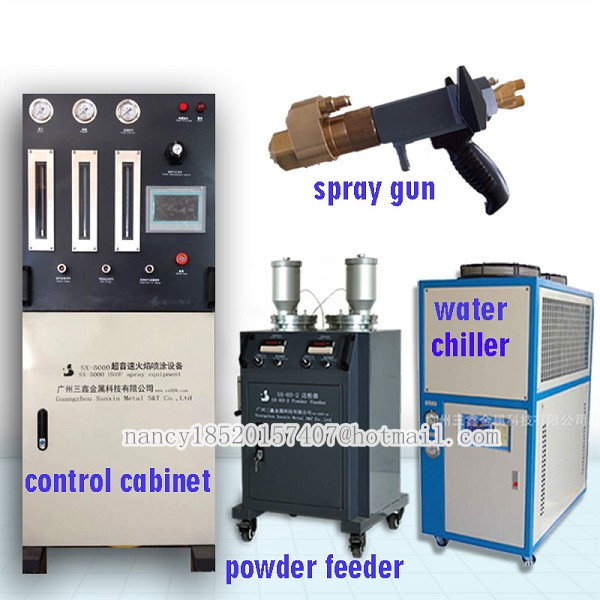

High-Velocity Oxy Fuel (HVOF) Spray System:

HVOF Spray System producing the highest-quality coatings
Nothing is more important in an HVOF system than its ability to produce high-quality coatings. Each of our systems is designed to generate extremely high particle velocity to produce ultra-dense coatings at exceptional rates. And we offer both liquid-fueled high-pressure and gaseous-fueled equipment developed to help you achieve the highest-performing coatings possible.

The principle of SX-8000 HVOF equipment:

SX-8000 supersonic flame spraying is a new type of HVOF system, Its principle is that the combustion supporting agen oxygen atomizes the kerosene fully with atomizing nozzle, then they will enter into combustion chamber as flammable mixed gas.It will burn in high temperature and high pressure after the ignition system ignites it. high-temperature and high-pressure supersonic flame flow will be formed after it’s burning in the Laval nozzle. powder feeding system will send the powder material from the area of low pressure into the flame flow, heating accelerated then spray to the workpiece surface to form high quality coatings.
